21 Four Web 2.0 technologies (SOAP/REST/AJAX/MASHUP)

Dear students,

We start our Unit 3 with one of cloud technologies Web 2.0

When internet was born, lot of applications that were created could be termed as Web 1.0. Then Web 2.0 technology enhanced the Web technologies.

Web 2.0 covered four different technologies namely

  1. SOAP services
  2. REST services
  3. AJAX services
  4. MASHUP services

We covered the entire Semester 2 learning about SOAP services and REST services

SOAP Services

SOAP services utilized SOAP protocol 1.0, 1.1, 1.2. It initially operated using HTTP, was inter-operable between any type of systems, languages, applications. SOAP made application integration easier and was loosely coupled. SOAP utilized XML data structure for any type of communication over HTTP application protocol. SOAP now works on protocol other than HTTP too and is suitable for complex applications.

REST services

REST services later was introduced to be much simpler that worked in distributed system with simple URI links and plain HTTP CRUD methods (GET/POST/PUT/DELETE). REST introduced JSON data structures which was easier to understand , use and much faster to operate on, compared to XML. REST is a good candidate for HTTP based applications.

AJAX

In earlier days, javascript was mainly responsible only for front end web page. AJAX enabled multitasking of web page. AJAX introduced backend processing multiplexed with front end processing. Just like an operating system multitasks giving user a richer experience of using multiple applications, AJAX uses controllers, event listeners model within javascript to make back end server tasks when the network is idle, while page is busy.

While one javascript function could collect data from back end, it would operate asynchronously not to stop the web page from performing any of its front end page functionality. AJAX stands for Asynchronous Javascript and XML

Java script works on single thread on a page and hence AJAX is not multithreaded but supports multitasking. But the browser can create multiple threads as it is a desktop application which has lot more permissions to create new threads, read and write to file, create more network connections etc.

MASHUP

While AJAX could connect from front end to back end without interrupting any of the processes running on a web page, MASHUP could bring together different back end services and do the needful to present/display it on the web page . The mashup reduces programmers effort to create a front end screen for the back end services it uses.

The best example of MASHUP is where with few lines of code in HTML, we can add and display a Google map with all its complex functionality without having to worry about writing the code to manage the map functionality on the page. The MASHUP code as such internally would be accessing varied services using the other Web 2.0 technologies like AJAX, REST or SOAP, thereby hiding all complexity to call the services or present it on the web page.

Lot of front end javascript frameworks like JQuery, AngularJS, NodeJS etc. support Web 2.0 technologies.

Web 2.0 helped developers to create rich internet applications (RIA)

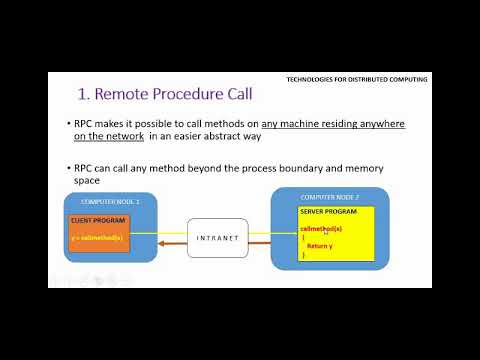

For more details, have a look at presentation 1 / presentation 2.

Thank you.
